Construction of Quay (68) in Addition to Development and Re-planning of El- Manteshouf Basin – Alexandria Port.

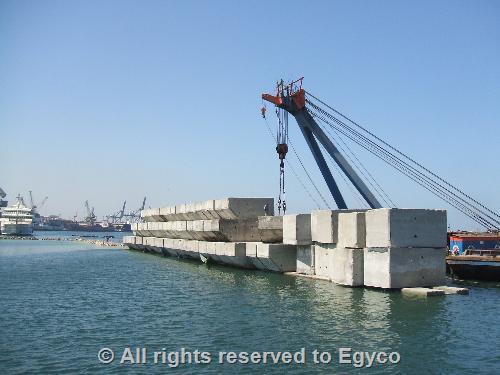

Preloading test for quay (68)

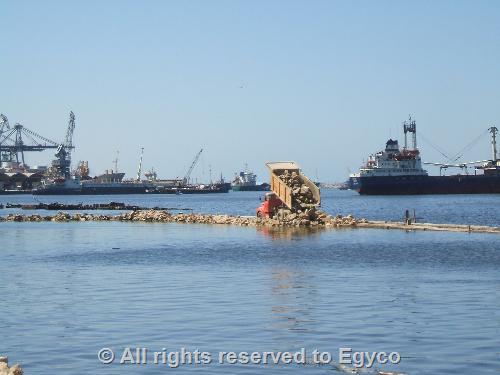

Throwing of rock backfill behind quay blocks after lifting preloading test blocks

Owner

:

Nasr General Contracting Company

Starting Date

:

2005

Value of Contract

:

30 millions L.E.

Description

:

The project is construction of quay (68)- extension of quay (67)- 10 meters depth, and backfilling of El-Manteshouf Basin to form storing yard behind the quay; as part of the development works of gate (27) in Alexandria Port (4th stage). The work includes the following:
Construction of Quay (68):

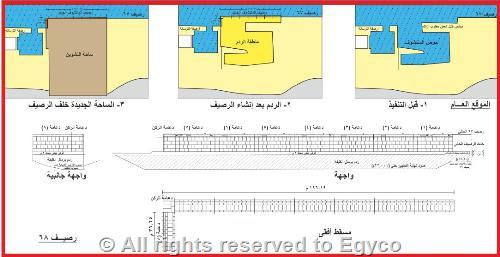

Quay wall consists of P.C. concrete blocks, with length of 232.44 m divided into 8 piers besides a corner pier, its depth 10 m divided into 4 rows topped by quay coping beam; and is implemented as follows:
 - Dredging the quay wall trench; to reach the rock layer suitable for foundations on depth of (22 m) below sea level.
- Quay wall trench backfilling with clean sand, then cast rubble to form basis foundation layer and leveling its surface with gravel.
- Place quay wall blocks, and perform the preloading test.
- Casting of coping beam and installation of bollards and rubber fenders.

El-Manteshouf Basin backfilling to form the storing yard:
    After the quay wall construction, the following works were executed: rock backfill and a gravel filter layer, then backfilling the area behind the quay, finishing the storing yards, and making concrete casting and interlocking tiles installations.
