Home > Company Projects > Important Projects > Sanitary Drainage Works
Development of Sanitary Drainage Utility at Shebeen El-Koum - Menoufeya Governorate

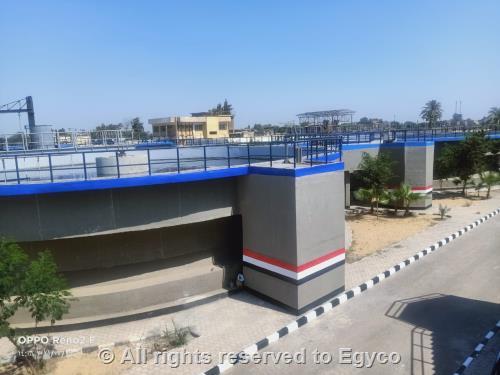

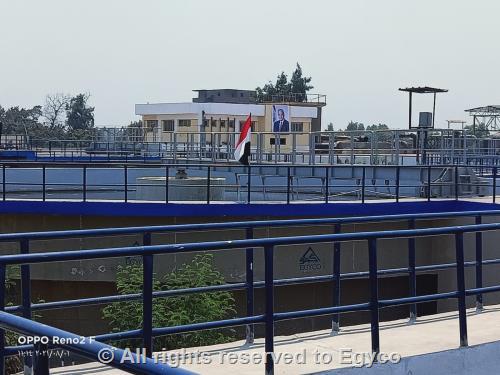

Spiral pumping station,Final sedimentation tanks & Filters tanks
Primary sedimentation tanks
Filters tanks
Inlet- screens – grit removal
Spiral pumping station
Grit removal
Grit removal
First Stage of Sanitary Drainage at Shebeen El-Koum
Purification Plant

Owner

:

National Organization for Potable Water & Sanitary Drainage

Contract Date

:

  First Stage :1984
  Expansions :2001
  Additional work :2009

Value of Contract

:

382 millions L.E.

Description

:

The project includes the design and implementation needed to develop and strengthen the Sanitary Drainage Utilities at Shebeen El-Koum City till year (2030). The area of the project (14.5) fed. including the former station.


• STAGE I:
- PURIFICATION PLANT: with discharge 60 thousand m3/day .
- (12) PUMPING STATIONS: 5 main stations +7 sub-stations with capacity ranging from 6500 to 20000 m3 / day.
- GRAVITY NETWORKS: Clay pipes of diameters ( 7" : 40" ) & length  ( 114.32 Km ) .
- FORCE MAIN: Ductile cast iron pipes of diameters (300: 800 mm) & length ( 32.86 Km ).
- CROSSINGS: (2)Tunnel crossings below the railway, diameter (2250 mm).


• STAGE II:
 - EXPANSIONS OF PURIFICATION PLANT: to raise the energy by 30 thousand m3 / day to reach 90 thousand m3 / day.
- (9) PUMPING STATIONS: (4) main stations + (5) sub-stations.
- GRAVITY NETWORKS:
    - Clay pipes of diameters ( 7" : 24" ) & length  ( 44.5 Km )
    - Plastic pipes of diameters (6:28 ") & length ( 37 km)
- FORCE MAIN:
    - Polyethylene pipes diameters (200 : 400 mm ) & length of 22 km.
    - U.P.V.C pipes of diameter (400 mm) & length (17.2 km)
- CROSSINGS:
    - (3) Tunnel crossings below the railway, diameters (2250, 1800,       800 mm).
    - (1) Tunnel crossing below Shebeen Sea, diameter (1800 mm)

• ADDITIONAL WORK : REPLACEMENT AND RENEWAL FORCE MAIN at two pumping stations 1&4.
